LL100N - Vantage-AU

Automatic self-levelling
Accuracy 1/8 inch @ 100 ft (3mm @ 30m)
Working range of 1,150 ft (350 m) diameter
Simple one-button operation for quick start up
Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
Single axis manual slope mode (with RC601 Remote Control)

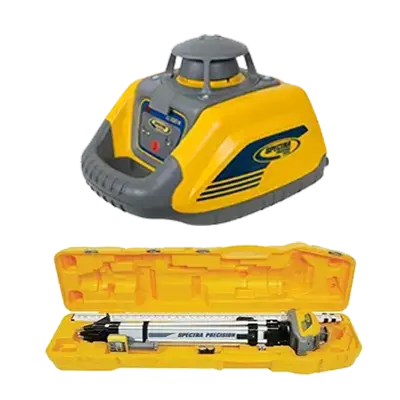

Kit available and fits in one case with tripod and grade rod
Extremely durable and portable
2 Year warranty

HR320 Receiver

HR320 Receiver Specifications

HR320 Features and Benefits

Automatic self-leveling increases productivity with fast setups and minimal training
One person elevation control with 1,150 ft (350 m) diameter range increases productivity
Durable construction can withstand tough jobsite conditions
Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
HR320 offers 2 accuracies to fit job site conditions
Exclusive 2-year limited warranty with instant “over the counter” exchange policy eliminates downtime

Specifications

Laser Source
650 nm visible, Class 2

Laser Accuracy
±1/8 in at 100 ft (±3 mm at 30 m)

Compensation Method
Electronic self-leveling / ±5 degrees

Operating Range
1,150 ft (350 m) diameter with receiver HR320

Out of Level Warning
Rotor stops, laser shuts off, red out-of-level LED flashes

Rotation Speed
600 RPM

Operating Temperature
23 °F to 113 °F (-5 °C to 45 °C)

Storage Temperature
-4 °F to 158 °F (-20 °C to 70 °C)

Battery Life
80 Hours Akaline

Size
8.5L × 6.7W × 6.0H in
(21.6L × 17.1W × 15.2H cm)

Water Resistant
IP Rating IP54

Weight
1.5 kg (3.3 lbs)

Battery Status
LED battery indicator

Warranty
2 Years
